Telrad L2 PDN Howto

Created by Faye Admin, Modified on Tue, May 20, 2025 at 7:36 AM by Faye Admin

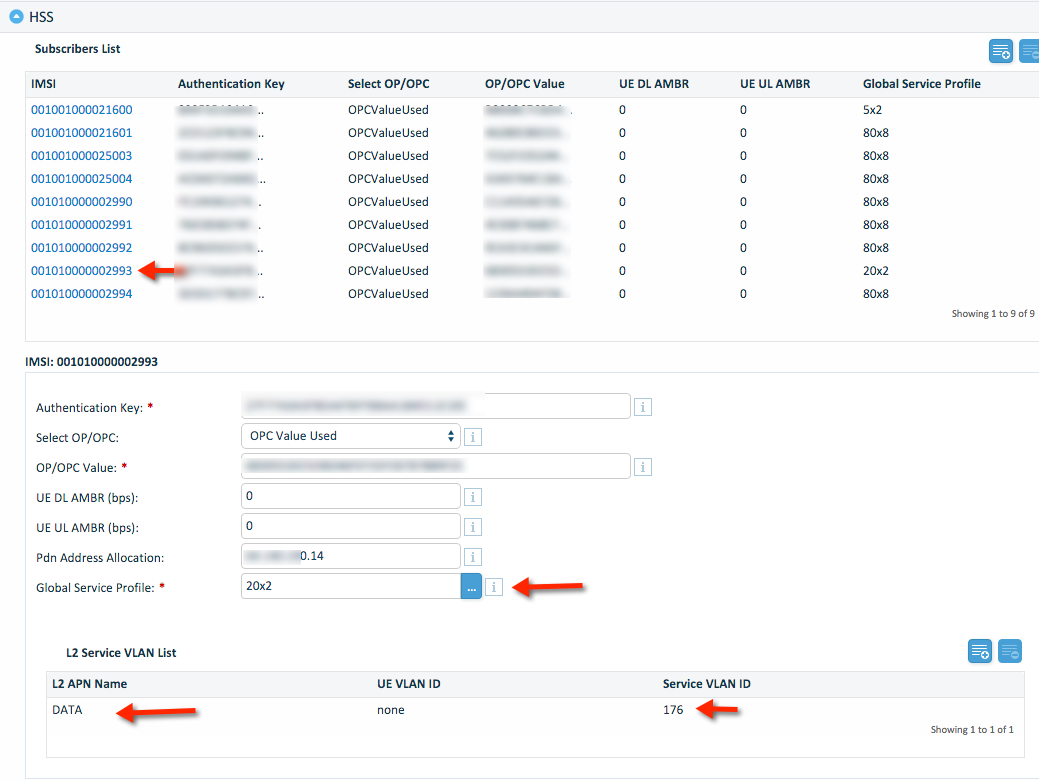

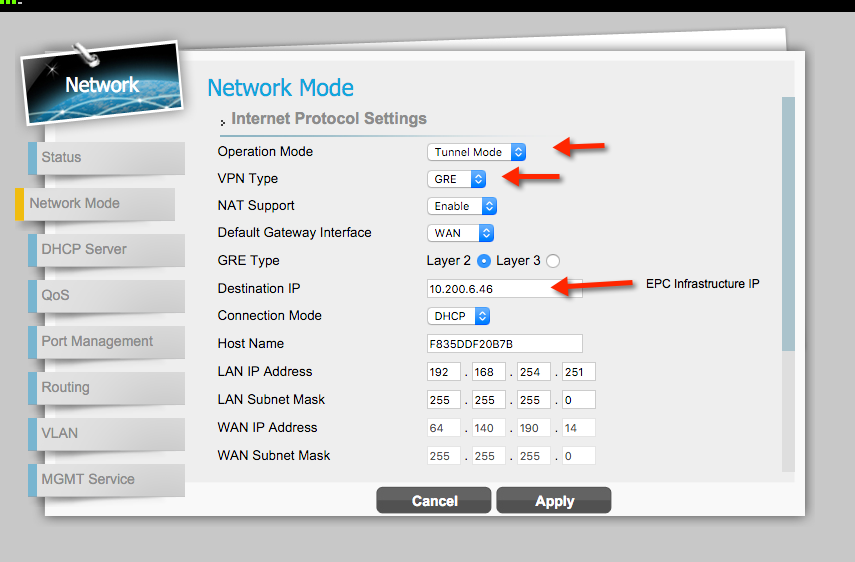

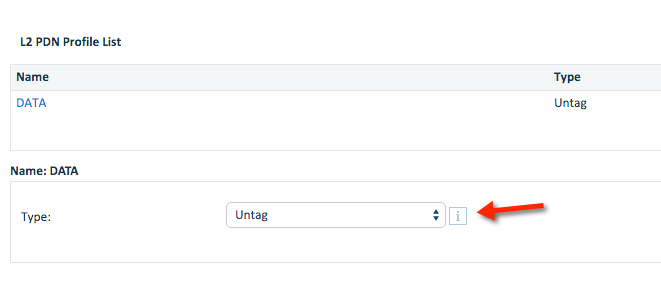

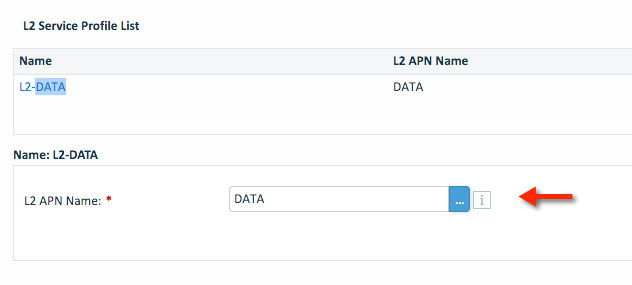

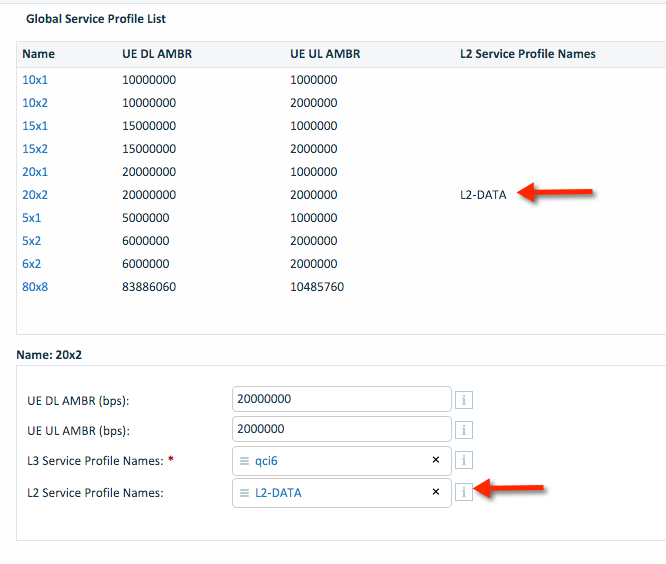

Follow these steps in Breeze view. Once done, create a corresponding VLAN on your router facing the EPC with DHCP Server for this customer's router. That's it!
